Biological Microscope Series, MMB |
Milton Biological Binocular Microscopes are suitable for Quality Assurance, Laboratories, Education and all other routine work in all areas of microscopy.
Our Biological Microscopes serves perfectly in various applications like Stained tissue sections in medicine, Unstained cells in phase contrast in medicine and biology, Plant stem cross sections in botany, Extremely fine structures like diatoms in dark field in biology, and Examination and analysis of germs and bacteria in field work. |
| |
 |
|

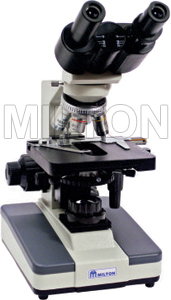

A) Digital Microscope - MMD2 - 40 - 100 - 400 - 1000
- Elegant design with quadruple nosepieces
- DIN Acromatic objective with oil immersion lense
- Double Layers Mechanical Stage
- LED illuminations
- Applied in biology, bacteriology, cytology and pharmacology
- Ideal in clinical examinations and teaching in education sector
|
| |
|
|
| |
| SPECIFICATIONS - |
| |
| |
| Technical Data |
Model- MMB2-40-100-400-1000 |
| Magnifications |
40x to 1000x |
| Objectives |
45mm DIN Acromatic4X,10X,40X(S),100X(S,Oil) |
| Eyepieces |
WF 10x |
| Nosepieces |
Quadruple |
| Viewing Head |
Articulated free Digital binocular head, 30° inclined, 360° rotatable |
| Working Distance |
24.95 mm |
| InterpupillaryDistance |
55-75 mm |
| Stage plate |
Double Layers Mechanical Stage 125X125 mm |
| Stage Moving Range |
60X40 mm |
| Focusing |
Coaxial Coarse and Fine Focusing Adjustable |
| Illumination |
LED 3V/1W with brightness control |
|
|
|
| |
| ................................................................................................................................................................................................................................................ |
| |
 |
|

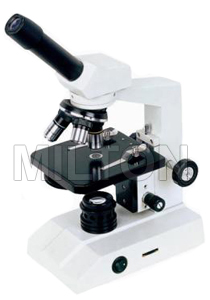

B) Biological Microscope- MMB1 - 40 - 100 - 400
- Sharp image over a wide field of view
- Elegant design with triple nosepieces
- DIN Acromatic objective
- Plain Mechanical Stage
- Halogen lamp illuminations with brightness control
- Applied in biology, bacteriology, cytology and pharmacology
- Ideal in clinical examinations and teaching in education sector
|
| |
|
|
| |
| SPECIFICATIONS - |
| |
| |
| Technical Data |
Model- MMB1-40-100-400 |
| Magnifications |
40x to 400x |
| Objectives |
DIN Acromatic4X,10X,40X |
| Eyepieces |
WF 10x |
| Nosepieces |
Triple |
| Viewing Head |
Monocular head, 45° inclined, 360° rotatable |
| Focusing |
Coaxial Coarse and Fine Focusing Adjustable |
| Stage plate |
Plain Stage120X130mm |
| Illumination |
Halogen lamp,6V/30W with brightness control |
|
|
|
|
